VS-81CNQ035APbF

Schottky Rectifier

VS-81CNQ035APbF Features

* 175 °C TJ operation

* Center tap module

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long t

VS-81CNQ035APbF General Description

The center tap Schottky rectifier module has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reve.

VS-81CNQ035APbF Datasheet (154.39 KB)

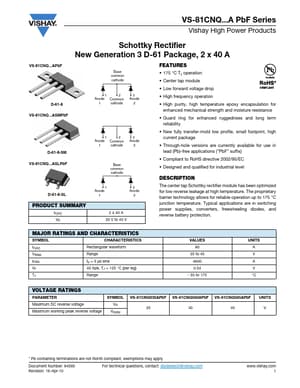

Preview of VS-81CNQ035APbF PDF

Datasheet Details

Part number:

VS-81CNQ035APbF

Manufacturer:

Vishay ↗

File Size:

154.39 KB

Description:

Schottky rectifier.
VS-81CNQA PbF Series Vishay High Power Products Schottky Rectifier New Generation 3 D-61 Package, 2 x 40 A VS-81CNQAPbF D-61-8 VS-81CNQASMPbF Base .
