VS-82CNQ030ASLPbF, VS-82CNQ030APbF Datasheet - Vishay

VS-82CNQ030ASLPbF Schottky Rectifier

The center tap Schottky rectifier module series has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheel.

VS-82CNQ030ASLPbF Features

* 150 °C TJ operation

* Dual center tap module

* Very low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness

VS-82CNQ030APbF-Vishay.pdf

This datasheet PDF includes multiple part numbers: VS-82CNQ030ASLPbF, VS-82CNQ030APbF. Please refer to the document for exact specifications by model.

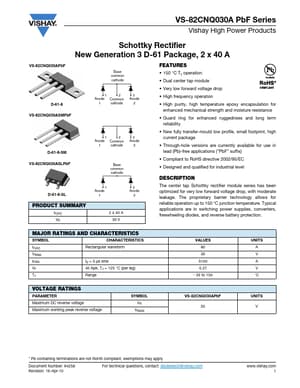

VS-82CNQ030ASLPbF Datasheet Preview Page 2 VS-82CNQ030ASLPbF Datasheet Preview Page 3

Datasheet Details

Part number:

VS-82CNQ030ASLPbF, VS-82CNQ030APbF

Manufacturer:

Vishay ↗

File Size:

158.92 KB

Description:

Schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: VS-82CNQ030ASLPbF, VS-82CNQ030APbF.
Please refer to the document for exact specifications by model.
