VS-85HF10 Standard Recovery Diodes

VS-85HF10 Description

VS-85HF(R), VS-86HF(R), VS-87HF(R), VS-88HF(R) Series www.vishay.com Vishay Semiconductors Standard Recovery Diodes, (Stud Version), 85 A DO-203AB.

VS-85HF10 Features

* High surge current capability
* Stud cathode and stud anode version
* Leaded version available
* Types up to 1600 V VRRM
* Designed and qualified for industrial level
* Material categorization: for definitions of compliance please see www. vishay. com/

VS-85HF10 Applications

* Battery chargers
* Converters
* Power supplies
* Machine tool controls
* Welding MAJOR RATINGS AND CHARACTERISTICS PARAMETER IF(AV) IF(RMS) IFSM I2t VRRM TJ TEST CONDITIONS TC 50 Hz 60 Hz 50 Hz 60 Hz Range 10 to 120 85 140 133 1700 1800 14 500 13 500 100

📥 Download Datasheet

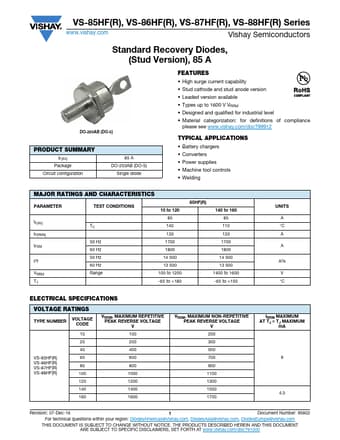

Preview of VS-85HF10 PDF
