* Short reverse recovery time
* Low stored charge
* Wide current range
* Excellent surge capabilities
* Stud cathode and stud anode versions
* Types up to 100 VRRM
* Material categorization: for definitions of compliance please see www.vishay.c
VS-85HFL Datasheet (205.02 KB)
VS-85HFL
205.02 KB
Fast recovery diodes.
www.vishay.com

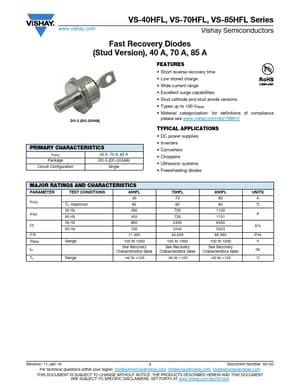

VS-40HFL, VS-70HFL, VS-85HFL Series
Vishay Semiconductors
Fast Recovery Diodes (Stud Version), 40 A, 70 A, 85 A
DO-5 (DO-203AB)
PRI.
