VS-8ETU04-N3

Ultrafast Rectifier

VS-8ETU04-N3 Features

* Ultrafast recovery time

* Low forward voltage drop

* 175 °C operating junction temperature

* Low leakage current

* Designed and qualified according to JEDEC®-JESD 47

* Material categorization: for definitions of compliance please see www.vishay.com/

VS-8ETU04-N3 General Description

/ APPLICATIONS FRED Pt® series are the state of the art ultrafast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultrafast recovery time. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggednes.

VS-8ETU04-N3 Datasheet (153.90 KB)

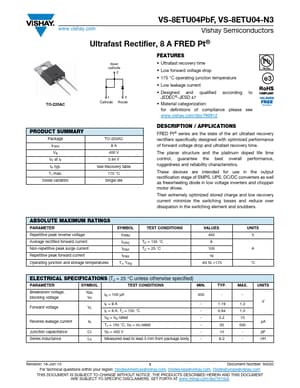

Preview of VS-8ETU04-N3 PDF

Datasheet Details

Part number:

VS-8ETU04-N3

Manufacturer:

Vishay ↗

File Size:

153.90 KB

Description:

Ultrafast rectifier.
www.vishay.com VS-8ETU04PbF, VS-8ETU04-N3 Vishay Semiconductors Ultrafast Rectifier, 8 A FRED Pt® TO-220AC Base cathode 2 13 Cathode Anode FEATUR.
