VS-8TQ080SPbF Schottky Rectifier

VS-8TQ080SPbF Description

VS-8TQ080SPbF, VS-8TQ100SPbF Vishay High Power Products Schottky Rectifier, 8 A D2PAK Base cathode 2 1 N/C 3 Anode PRODUCT SUMMARY IF(AV) VR 8A .
The VS-8TQ Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-8TQ080SPbF Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Me

VS-8TQ080SPbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. VALUES 8 80/100 850 0.58 - 55 to 175 UNITS A V A V °C VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VR VRWM VS-8TQ080SPbF 80 VS-8TQ100SPbF 100 U

📥 Download Datasheet

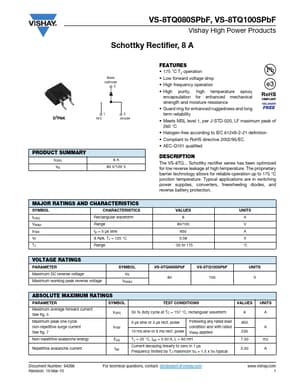

Preview of VS-8TQ080SPbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
