VS-90SQ035-M3 - Schottky Rectifier

This page provides the datasheet information for the VS-90SQ035-M3, a member of the VS-90SQ030 Schottky Rectifier family.

Datasheet Summary

Description

The VS-90SQ axial leaded Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature.

Features

  • 150 °C TJ operation.
  • Low forward voltage drop.
  • High frequency operation.
  • High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
  • Guard ring for enhanced ruggedness and long term reliability.
  • Compliant to RoHS Directive 2002/95/EC.
  • Designed and qualified for commercial level.
  • Halogen-free according to IEC 61249-2-21 definition (-M3 only).

📥 Download Datasheet

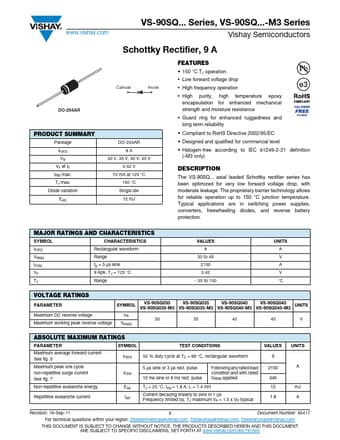

Datasheet preview – VS-90SQ035-M3
