VS-HFA32PA120C-N3, VS-HFA32PA120CPbF, Ultrafast Soft Recovery Diode

www.vishay.com VS-HFA32PA120CPbF, VS-HFA32PA120C-N3 Vishay Semiconductors HEXFRED® Ultrafast Soft Recovery Diode, 2 x 16 A 3 2 1 TO-247AC Base comm.
VS-HFA32PA120C is a state of the art ultrafast recovery diode.

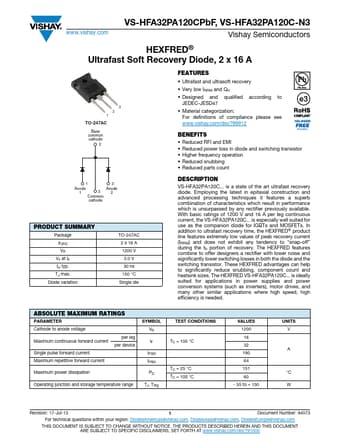

datasheet Preview Page 1 from Datasheet4u.com

VS-HFA32PA120CPbF-Vishay.pdf

VS-HFA32PA120C-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-HFA32PA120C-N3, VS-HFA32PA120CPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-HFA32PA120C-N3, VS-HFA32PA120CPbF

Manufacturer:

Vishay ↗

File Size:

146.54 KB

Description:

Ultrafast Soft Recovery Diode

Note:

This datasheet PDF includes multiple part numbers: VS-HFA32PA120C-N3, VS-HFA32PA120CPbF.
Please refer to the document for exact specifications by model.

Features

* Ultrafast and ultrasoft recovery
* Very low IRRM and Qrr
* Designed and qualified according to JEDEC-JESD47
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 BENEFITS Available
* Reduced RFI and EMI

Applications

* in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed. ABSOLUTE MAXIMUM RATINGS PARAMETER Cathode to anode voltage per leg Maximum continuous forward current per device Single pulse forward c
