VS-P135, VS-P101 Passivated Assembled Circuit Elements Power Modules

VS-P135 Description

www.vishay.com VS-P100 Series Vishay Semiconductors Power Modules, Passivated Assembled Circuit Elements, 25 A PACE-PAK (D-19) PRIMARY CHARACTERIS.
The VS-P100 series of integrated power circuits consists of power thyristors and power diodes configured in a single package.

VS-P135 Features

* Glass passivated junctions for greater reliability
* Electrically isolated base plate
* Available up to 1200 VRRM/VDRM
* High dynamic characteristics
* Wide choice of circuit configurations
* Simplified mechanical design and assembly
* UL E78

VS-P135 Applications

* include power supplies, control circuits and battery chargers. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IO 85 °C 50 Hz ITSM 60 Hz 50 Hz I2t 60 Hz I2t VDRM, VRRM VISOL TJ TStg Range ELECTRICAL SPECIFICATIONS VOLTAGE RATINGS TYPE NUMBER VS-P101, VS-P121, VS-P131 VS-P102,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-P135, VS-P101. Please refer to the document for exact specifications by model.

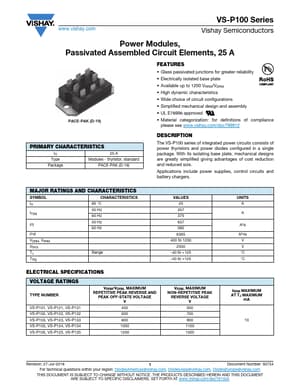

datasheet Preview Page 2 datasheet Preview Page 3
