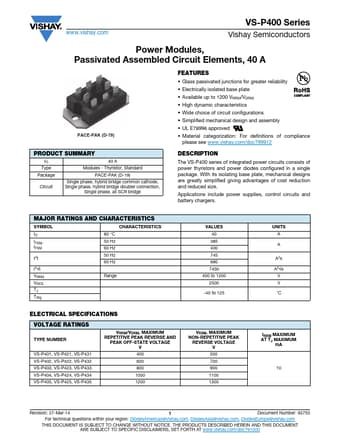

VS-P404 Datasheet - Vishay

VS-P404 Power Modules

The VS-P400 series of integrated power circuits consists of power thyristors and power diodes configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reduction and reduced size. Applications include power supplies, control ci.

VS-P404 Features

* Glass passivated junctions for greater reliability

* Electrically isolated base plate

* Available up to 1200 VRRM/VDRM

* High dynamic characteristics

* Wide choice of circuit configurations

* Simplified mechanical design and assembly

* UL E78

VS-P404 Datasheet (134.48 KB)
