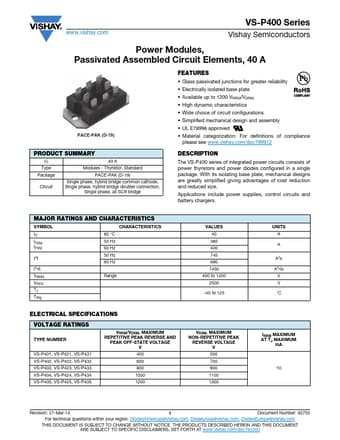

www.vishay.com VS-P400 Series Vishay Semiconductors Power Modules, Passivated Assembled Circuit Elements, 40 A PACE-PAK (D-19) PRODUCT SUMMARY IO.
The VS-P400 series of integrated power circuits consists of power thyristors and power diodes configured in a single package.

datasheet Preview Page 1 from Datasheet4u.com

VS-P401-Vishay.pdf

VS-P424 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-P424, VS-P401. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-P424, VS-P401

Manufacturer:

Vishay ↗

File Size:

134.48 KB

Description:

Power Modules

Note:

This datasheet PDF includes multiple part numbers: VS-P424, VS-P401.
Please refer to the document for exact specifications by model.

Features

* Glass passivated junctions for greater reliability
* Electrically isolated base plate
* Available up to 1200 VRRM/VDRM
* High dynamic characteristics
* Wide choice of circuit configurations
* Simplified mechanical design and assembly
* UL E78

Applications

* include power supplies, control circuits and battery chargers. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IO ITSM, IFSM 80 °C 50 Hz 60 Hz I2t 50 Hz 60 Hz I2t VRRM VISOL TJ TStg Range VALUES 40 385 400 745 680 7450 400 to 1200 2500 -40 to 125 ELECTRICAL SPECIFICATIONS VOLTA
