VS-SD1500C08L, VS-SD1500C04L Standard Recovery Diodes

VS-SD1500C08L Description

www.vishay.com VS-SD1500C..L Series Vishay Semiconductors Standard Recovery Diodes, (Hockey PUK Version), 1600 A B-PUK (DO-200AB) PRIMARY CHARACTE.

VS-SD1500C08L Features

* Wide current range
* High voltage ratings up to 3000 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style B-PUK (DO-200AB)
* Material categorization: for definitions of compliance please see www. vishay. com

VS-SD1500C08L Applications

* Converters
* Power supplies
* Machine tool controls
* High power drives
* Medium traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 1600 55 3010

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-SD1500C08L, VS-SD1500C04L. Please refer to the document for exact specifications by model.

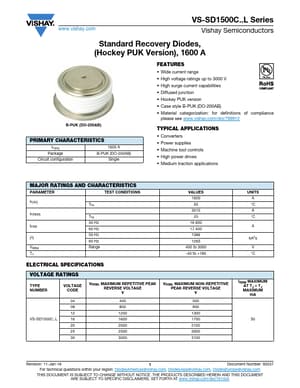

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-SD1500C08L, VS-SD1500C04L
Manufacturer
Vishay ↗
File Size
154.50 KB
Datasheet
VS-SD1500C04L-Vishay.pdf
Description
Standard Recovery Diodes
Note
This datasheet PDF includes multiple part numbers: VS-SD1500C08L, VS-SD1500C04L.
Please refer to the document for exact specifications by model.
