VS-ST1000C24K, VS-ST1000C12K, Phase Control Thyristors

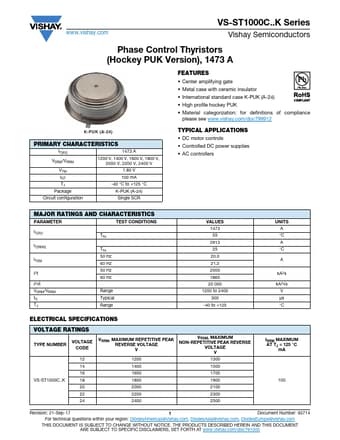

www.vishay.com VS-ST1000C..K Series Vishay Semiconductors Phase Control Thyristors (Hockey PUK Version), 1473 A K-PUK (A-24) PRIMARY CHARACTERISTI.

VS-ST1000C12K-Vishay.pdf

VS-ST1000C24K Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-ST1000C24K, VS-ST1000C12K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-ST1000C24K, VS-ST1000C12K

Manufacturer:

Vishay ↗

File Size:

177.28 KB

Description:

Phase Control Thyristors

Note:

This datasheet PDF includes multiple part numbers: VS-ST1000C24K, VS-ST1000C12K.
Please refer to the document for exact specifications by model.

Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case K-PUK (A-24)
* High profile hockey PUK

Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers      MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t I2t VDRM/VRRM tq TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Range Typical Range VALUES 1473 55 2913 25 20.0 21.2 2
