VS-ST110S12, VS-ST110S04 Phase Control Thyristors

VS-ST110S12 Description

www.vishay.com VS-ST110SPbF Series Vishay Semiconductors Phase Control Thyristors (Stud Version), 110 A TO-209AC (TO-94) PRODUCT SUMMARY IT(AV) VD.

VS-ST110S12 Features

* Center gate
* International standard case TO-209AC (TO-94)
* Compression bonded encapsulation for heavy duty operations such as severe thermal cycling
* Hermetic glass-metal case with ceramic insulator (Glass-metal seal over 1200 V)
* Designed and qualified

VS-ST110S12 Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers     MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 110 90 175 2700 2830 36.4 33.2 400 to 1600 100 -40 t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-ST110S12, VS-ST110S04. Please refer to the document for exact specifications by model.

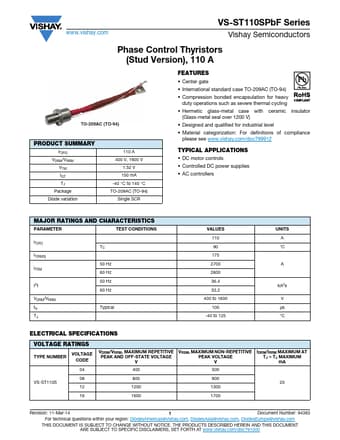

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-ST110S12, VS-ST110S04
Manufacturer
Vishay ↗
File Size
190.48 KB
Datasheet
VS-ST110S04-Vishay.pdf
Description
Phase Control Thyristors
Note
This datasheet PDF includes multiple part numbers: VS-ST110S12, VS-ST110S04.
Please refer to the document for exact specifications by model.
