VS-ST230C04C, VS-ST230C Phase Control Thyristors

Vishay

Description

www.vishay.com VS-ST230C Series Vishay Semiconductors Phase Control Thyristors (Hockey PUK Version), 410 A A-PUK (TO-200AB) PRIMARY CHARACTERISTIC.

📥 Download Datasheet

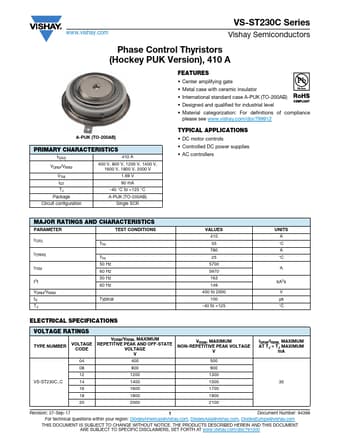

VS-ST230C04C Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-ST230C04C, VS-ST230C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-ST230C04C, VS-ST230C
Manufacturer: Vishay ↗
File Size: 201.32 KB
Datasheet: VS-ST230C-Vishay.pdf
Description: Phase Control Thyristors
Note: This datasheet PDF includes multiple part numbers: VS-ST230C04C, VS-ST230C.
Please refer to the document for exact specifications by model.

Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case A-PUK (TO-200AB)
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 TYPICAL APPLI

Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers        MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 410 55 780 25 5700 5970 163 149 400 to 20
