VS-ST280C04C, VS-ST280C, Phase Control Thyristors

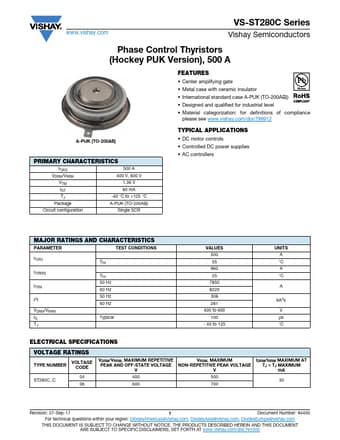

www.vishay.com VS-ST280C Series Vishay Semiconductors Phase Control Thyristors (Hockey PUK Version), 500 A A-PUK (TO-200AB) PRIMARY CHARACTERISTIC.

VS-ST280C-Vishay.pdf

VS-ST280C04C Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-ST280C04C, VS-ST280C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-ST280C04C, VS-ST280C

Manufacturer:

Vishay ↗

File Size:

217.74 KB

Description:

Phase Control Thyristors

Note:

This datasheet PDF includes multiple part numbers: VS-ST280C04C, VS-ST280C.
Please refer to the document for exact specifications by model.

Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case A-PUK (TO-200AB))
* Designed and qualified for industrial level
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 TYPICAL APPL

Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers           MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 500 55 960 25 7850 8220 308 281 400
