VS-STPS40L45CWPbF Schottky Rectifier

VS-STPS40L45CWPbF Description

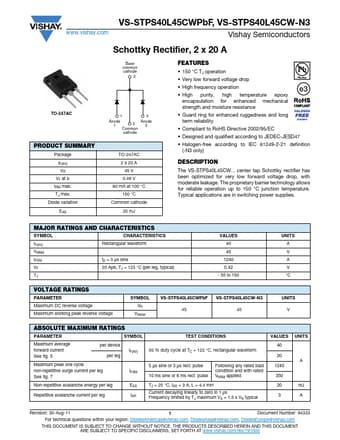

VS-STPS40L45CWPbF, VS-STPS40L45CW-N3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 20 A Base common cathode 2 TO-247AC PRODUCT SUM.
The VS-STPS40L45CW center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-STPS40L45CWPbF Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

VS-STPS40L45CWPbF Applications

* are in switching power supplies. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM Rectangular waveform IFSM tp = 5 μs sine VF 20 Apk, TJ = 125 °C (per leg, typical) TJ VALUES 40 45 1240 0.42 - 55 to 150 UNITS A V A V °C VOLTAGE RATINGS PARAMETER Maximum DC reverse volta
