VS-VSKL136-08PBF, VS-VSKT162-16PBF Datasheet - Vishay

VS-VSKL136-08PBF, VS-VSKT162-16PBF, Thyristor/Diode & Thyristor/Thyristor

VS-VSK.136..PbF, VS-VSK.142..PbF, VS-VSK.162..PbF Series www.vishay.com Vishay Semiconductors Thyristor/Diode and Thyristor/Thyristor, 135 A to 160.

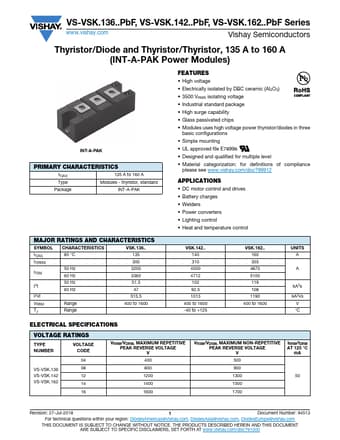

datasheet Preview Page 1 from Datasheet4u.com

VS-VSKT162-16PBF-Vishay.pdf

VS-VSKL136-08PBF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-VSKL136-08PBF, VS-VSKT162-16PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-VSKL136-08PBF, VS-VSKT162-16PBF

Manufacturer:

Vishay ↗

File Size:

397.88 KB

Description:

Thyristor/Diode & Thyristor/Thyristor

Note:

This datasheet PDF includes multiple part numbers: VS-VSKL136-08PBF, VS-VSKT162-16PBF.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Electrically isolated by DBC ceramic (AI2O3)
* 3500 VRMS isolating voltage
* Industrial standard package
* High surge capability
* Glass passivated chips
* Modules uses high voltage power thyristor/diodes in three basic configu

Applications

* DC motor control and drives
* Battery charges
* Welders
* Power converters
* Lighting control
* Heat and temperature control MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS VSK.136.. IT(AV) IT(RMS) ITSM 85 °C 50 Hz 60 Hz 135 300 3200 3
