VS-VSKT142-14PBF, VS-VSKT162-16PBF - Thyristor/Diode & Thyristor/Thyristor

Vishay

📥 Download Datasheet

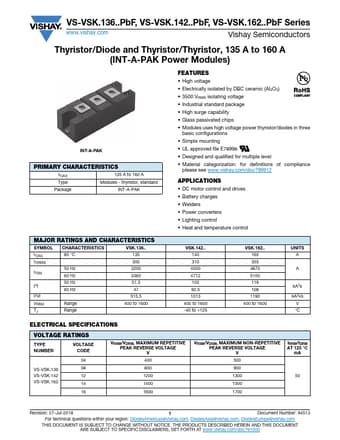

VS-VSKT142-14PBF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-VSKT142-14PBF, VS-VSKT162-16PBF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-VSKT142-14PBF, VS-VSKT162-16PBF
Manufacturer	Vishay ↗
File Size	397.88 KB
Description	Thyristor/Diode & Thyristor/Thyristor
Datasheet	VS-VSKT162-16PBF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-VSKT142-14PBF, VS-VSKT162-16PBF. Please refer to the document for exact specifications by model.

VS-VSKT142-14PBF Product details

Features

High voltage.
Electrically isolated by DBC ceramic (AI2O3).
3500 VRMS isolating voltage.
Industrial standard package.
High surge capability.
Glass passivated chips.
Modules uses high voltage power thyristor/diodes in three basic configurations.
Simple mounting.
UL approved file E78996.
Designed and qualified for multiple level.
Material categorization: for definitions of compliance please see www.
