VSIB2540, VSIB2520 Single-Phase Single In-Line Bridge Rectifiers

VSIB2540 Description

www.DataSheet.co.kr New Product VSIB2520 thru VSIB2580 Vishay General Semiconductor Single-Phase Single In-Line Bridge Rectifiers .

VSIB2540 Features

* UL recognition file number E54214
* Thin single in-line package
* Glass passivated chip junction
* High surge current capability
* High case dielectric strength of 2500 VRMS
* Solder dip 260 °C, 40 s
* Component in accordance to RoHS 2002/95/

VSIB2540 Applications

* General purpose use in ac-to-dc bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. 25 A 200 V to 800 V 350 A 10 µA 1.0 V 150 °C ~ ~ ~ ~ Case Style GSIB-5S PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM IR VF TJ max. MECH

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VSIB2540, VSIB2520. Please refer to the document for exact specifications by model.

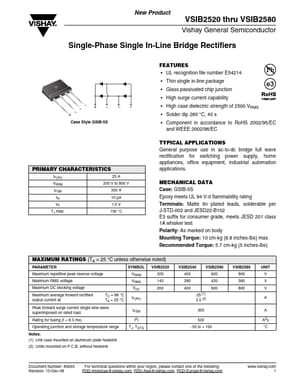

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSIB2540, VSIB2520
Manufacturer
Vishay ↗
File Size
151.46 KB
Datasheet
VSIB2520_Vishay.pdf
Description
Single-Phase Single In-Line Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: VSIB2540, VSIB2520.
Please refer to the document for exact specifications by model.
