VSIB4A20 Single-Phase Single In-Line Bridge Rectifier

www.DataSheet.co.kr New Product VSIB4A20 thru VSIB4A80 Vishay General Semiconductor Single-Phase Single In-Line Bridge Rectifier .

VSIB4A20_Vishay.pdf

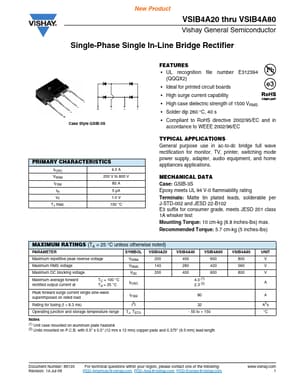

VSIB4A20 Datasheet Preview — Preview of VSIB4A20 PDF

Datasheet Details

Part number:

VSIB4A20

Manufacturer:

Vishay ↗

File Size:

158.30 KB

Description:

Single-Phase Single In-Line Bridge Rectifier

Features

* UL recognition file number E312394 (QQQX2)
* Ideal for printed circuit boards
* High surge current capability ~ ~ + Case Style GSIB-3S
* High case dielectric strength of 1500 VRMS + ~ ~ -
* Solder dip 260 °C, 40 s
* Compliant to RoHS directive 2002

Applications

* General purpose use in ac-to-dc bridge full wave rectification for monitor, TV, printer, switching mode power supply, adapter, audio equipment, and home appliances applications. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM IR VF TJ max. 4.0 A 200 V to 800 V 80 A 5 µA 1.0 V 150 °C MECHANICAL DATA Case:
