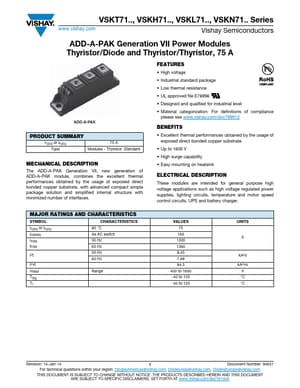

datasheet Preview Page 1 from Datasheet4u.com

VSKT71-04P, VSKH71-06P ADD-A-PAK Generation VII Power Modules

VSKT71.., VSKH71.., VSKL71.., VSKN71..Series www.vishay.com Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Thyristor/Diode and Thyri.
The ADD-A-PAK Generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

VSKH71-06P-Vishay.pdf

VSKT71-04P Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKT71-04P, VSKH71-06P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VSKT71-04P, VSKH71-06P

Manufacturer:

Vishay ↗

File Size:

316.32 KB

Description:

ADD-A-PAK Generation VII Power Modules

Note:

This datasheet PDF includes multiple part numbers: VSKT71-04P, VSKH71-06P.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Industrial standard package
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 BENEFITS

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IT(AV) or IF(AV) IO(RMS) ITSM, IFSM I2t I2t VRRM TStg TJ 85 °C As AC switch 50 Hz 60 Hz 50 Hz 60 Hz
