VY2100K29U2JG6*V5, VY2 - AC Line Rated Disc Capacitors

Vishay

The VY2100K29U2JG6*V5 by Vishay is a AC Line Rated Disc Capacitors. Below is the official datasheet preview.

📥 Download Datasheet

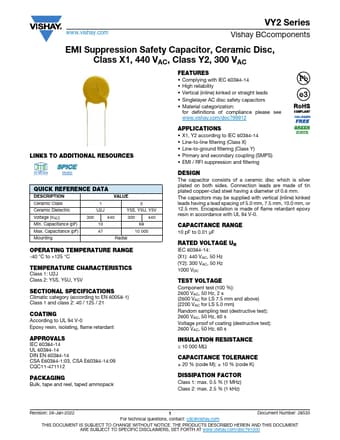

VY2100K29U2JG6*V5 AC Line Rated Disc Capacitors by Vishay - Datasheet Preview — Official preview page of the **VY2100K29U2JG6*V5** AC Line Rated Disc Capacitors datasheet (Vishay).

Datasheet Details

Part number	*VY2100K29U2JG6V5, VY2**
Manufacturer	Vishay
File Size	167.64 KB
Description	AC Line Rated Disc Capacitors
Datasheet	VY2_Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: *VY2100K29U2JG6V5, VY2**. Please refer to the document for exact specifications by model.
Additional preview pages of the *VY2100K29U2JG6V5** datasheet.

VY2100K29U2JG6*V5 Product details

Description

VALUE Ceramic Class 1 2 Ceramic Dielectric U2J Y5S, Y5U, Y5V Voltage (VAC) Min.Capacitance (pF) 300 440 10 300 440 68 Max.Capacitance (pF) 47 10 000 Mounting Radial OPERATING TEMPERATURE RANGE -40 °C to +125 °C TEMPERATURE CHARACTERISTICS Class 1: U2J Class 2: Y5S, Y5U, Y5V SECTIONAL SPECIFICATIONS Climatic category (according to EN 60058-1) Class 1 and class 2: 40 / 125 / 21 COATING According to UL 94 V-0 Epoxy resin, isolating, flame retardant APPROVALS IEC 60384-14 UL

Features

Complying with IEC 60384-14.
High reliability.
Vertical (inline) kinked or straight leads.
Singlelayer AC disc safety capacitors.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
