VY2221K29Y5SG6*V5 Datasheet, Disc Capacitors, Vishay

Ac line rated disc capacitors

📥 Download PDF (167.64 KB)

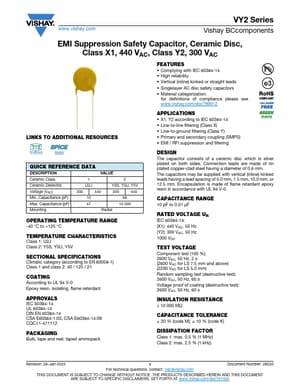

VY2221K29Y5SG6*V5 Datasheet Preview Page 1 — Preview of VY2221K29Y5SG6*V5 Datasheet

VY2221K29Y5SG6*V5 Datasheet Preview Page 2

VY2221K29Y5SG6*V5 Datasheet Preview Page 3

PDF File Details

Part number:

VY2221K29Y5SG6*V5

Manufacturer:

Vishay ↗

File Size:

167.64 KB

Download:

📄 Download the VY2221K29Y5SG6*V5 Datasheet PDF

Description:

Ac line rated disc capacitors.

VALUE

Ceramic Class

1

2

Ceramic Dielectric

U2J

Y5S, Y5U, Y5V

Voltage (VAC) Min.
Capacitance (pF)

300

440

10

300

440

68

Max.
Capacitance (pF)

47

10 000

Mounting

Radial

OPERATING TEM.

✔ VY2221K29Y5SG6*V5 Features

Complying with IEC 60384-14
High reliability
Vertical (inline) kinked or straight leads
Singlelayer AC disc safety capacitors
Material categorization: for defin

✔ VY2221K29Y5SG6*V5 Application

X1, Y2 according to IEC 60384-14
Line-to-line filtering (Class X)
Line-to-ground filtering (Class Y)
