VY2222M35Y5US6*V7 Datasheet - Vishay

AC Line Rated Disc Capacitors

VY2222M35Y5US6*V7 Features

* Complying with IEC 60384-14

* High reliability

* Vertical (inline) kinked or straight leads

* Singlelayer AC disc safety capacitors

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 LINKS TO ADDITIONAL RESOURCES 3

VY2222M35Y5US6*V7 General Description

VALUE Ceramic Class 1 2 Ceramic Dielectric U2J Y5S, Y5U, Y5V Voltage (VAC) Min. Capacitance (pF) 300 440 10 300 440 68 Max. Capacitance (pF) 47 10 000 Mounting Radial OPERATING TEMPERATURE RANGE -40 °C to +125 °C TEMPERATURE CHARACTERISTICS Class 1: U2J Class 2: Y5S, Y5U, Y5V SEC.

VY2222M35Y5US6*V7 Datasheet (167.64 KB)

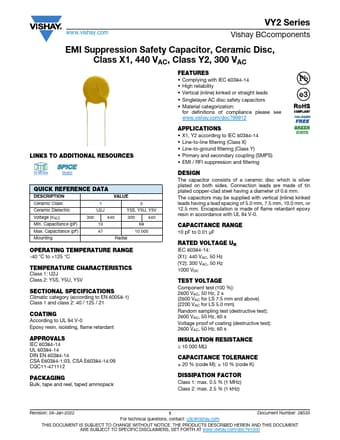

Preview of VY2222M35Y5US6*V7 PDF

Datasheet Details

Part number:

VY2222M35Y5US6*V7

Manufacturer:

Vishay ↗

File Size:

167.64 KB

Description:

Ac line rated disc capacitors.
