VY2471K29Y5SG6*V5, VY2, AC Line Rated Disc Capacitors

www.vishay.com VY2 Series Vishay BCcomponents EMI Suppression Safety Capacitor, Ceramic Disc, Class X1, 440 VAC, Class Y2, 300 VAC .
VALUE Ceramic Class 1 2 Ceramic Dielectric U2J Y5S, Y5U, Y5V Voltage (VAC) Min.

VY2_Vishay.pdf

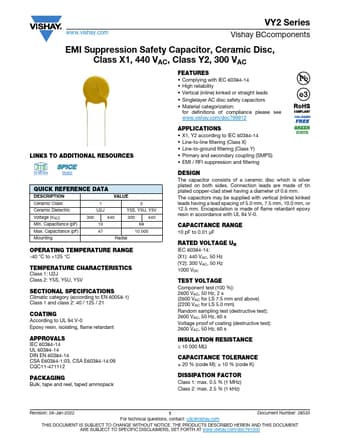

VY2471K29Y5SG6*V5 Datasheet Preview — This datasheet PDF includes multiple part numbers: VY2471K29Y5SG6*V5, VY2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VY2471K29Y5SG6*V5, VY2

Manufacturer:

Vishay ↗

File Size:

167.64 KB

Description:

AC Line Rated Disc Capacitors

Note:

This datasheet PDF includes multiple part numbers: VY2471K29Y5SG6*V5, VY2.
Please refer to the document for exact specifications by model.

Features

* Complying with IEC 60384-14
* High reliability
* Vertical (inline) kinked or straight leads
* Singlelayer AC disc safety capacitors
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO ADDITIONAL RESOURCES 3

Applications

* X1, Y2 according to IEC 60384-14
* Line-to-line filtering (Class X)
* Line-to-ground filtering (Class Y)
* Primary and secondary coupling (SMPS)
* EMI / RFI suppression and filtering DESIGN The capacitor consists of a ceramic disc which is silver plated on b
