ZMY3V9 - Zener Diodes

Vishay

Key Features

Silicon planar power Zener diodes.
For use in stablilizing and clipping circuits with high power rating.
The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are available upon request.
These diodes are also available in the DO-41 case with the type designation ZPY3V9 to ZPY75.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

ZMY3V9 zener diodes by Vishay - Datasheet Preview

Datasheet Details

Part number	ZMY3V9
Manufacturer	Vishay
File Size	116.04 KB
Description	Zener Diodes
Datasheet	ZMY3V9 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
ZMY3V9	SILICON PLANAR POWER ZENER DIODES	SEMTECH
ZMY3V0	SILICON PLANAR POWER ZENER DIODES	SEMTECH
ZMY3V3	SILICON PLANAR POWER ZENER DIODES	SEMTECH
ZMY3V6	SILICON PLANAR POWER ZENER DIODES	SEMTECH
ZMY3.0G	SMD Zener Diodes	Diotec

Other Datasheets by Vishay

Part Number	Description
ZMY30	Zener Diodes
ZMY33	Zener Diodes
ZMY36	Zener Diodes
ZMY39	Zener Diodes
ZMY10	Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

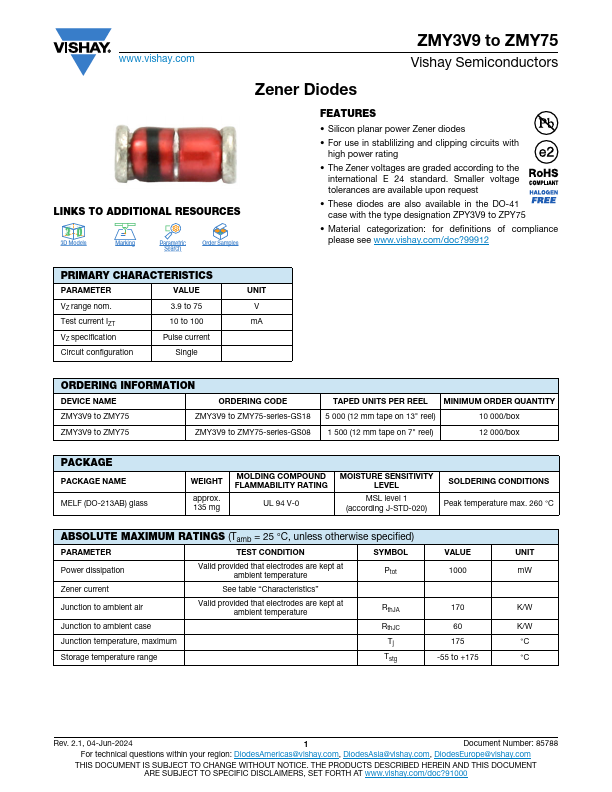

www.vishay.com ZMY3V9 to ZMY75 Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples FEATURES • Silicon planar power Zener diodes • For use in stablilizing and clipping circuits with high power rating • The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are available upon request • These diodes are also available in the DO-41 case with the type designation ZPY3V9 to ZPY75 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. 3.
