ZMY5V1, ZMY3V9 - Zener Diodes

Vishay

📥 Download Datasheet

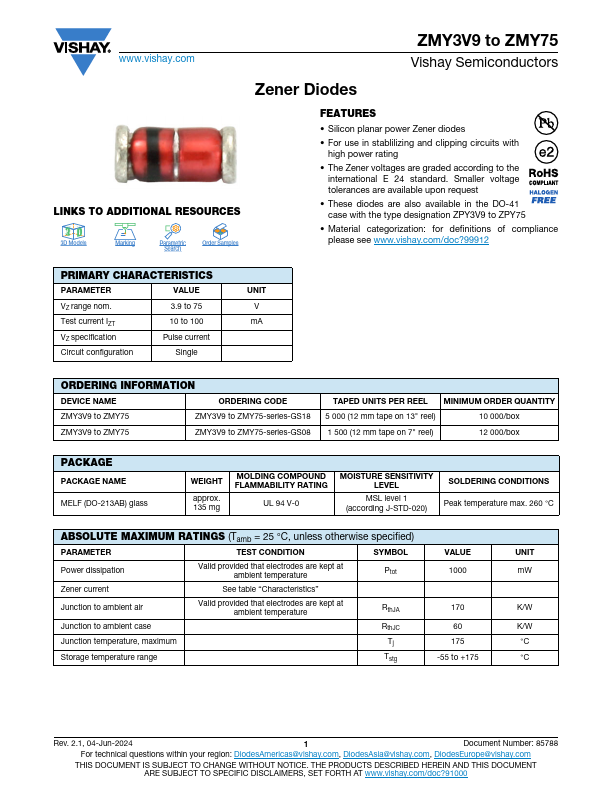

ZMY5V1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZMY5V1, ZMY3V9. Please refer to the document for exact specifications by model.

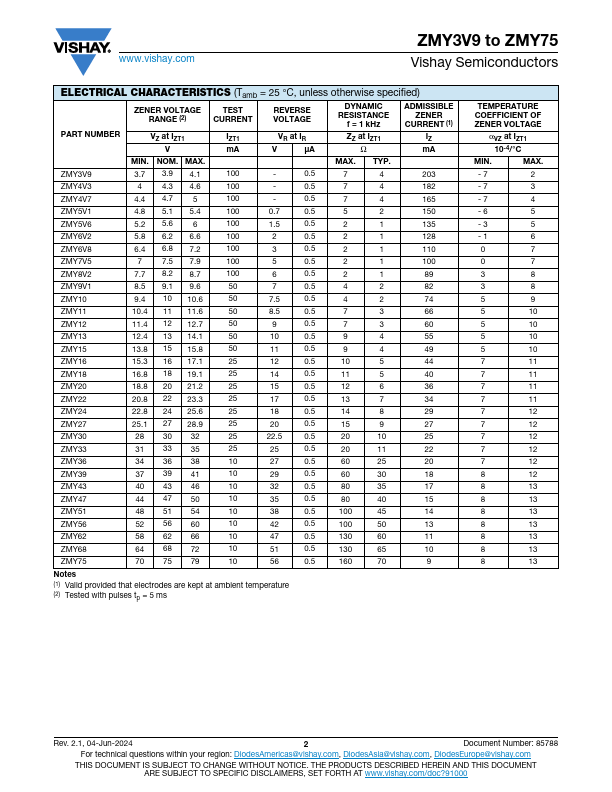

datasheet Preview Page 2

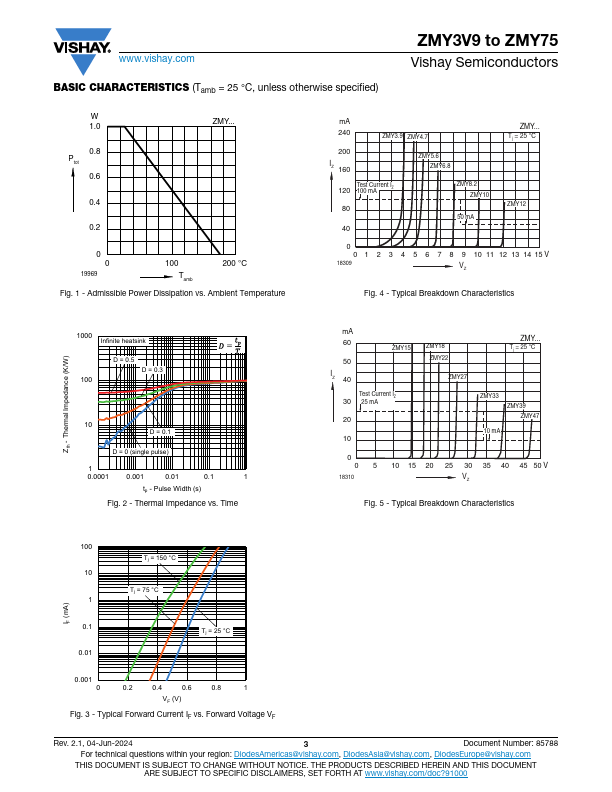

datasheet Preview Page 3

Datasheet Details

Part number	ZMY5V1, ZMY3V9
Manufacturer	Vishay ↗
File Size	116.04 KB
Description	Zener Diodes
Datasheet	ZMY3V9-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: ZMY5V1, ZMY3V9. Please refer to the document for exact specifications by model.

ZMY5V1 Product details

Features

Silicon planar power Zener diodes.
For use in stablilizing and clipping circuits with high power rating.
The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are available upon request.
These diodes are also available in the DO-41 case with the type designation ZPY3V9 to ZPY75.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
