VSC1235

(VSC1235 / VSC1236) 16:1 Multiplexer

VSC1235 Features

* Support of Multiple Rates with a Single Reference Surpasses SONET/SDH Jitter Tolerance Requirements True Loss of Signal Function Direct Recovery of NRZ and RZ Signals Common Features Low Power SiGe Technology No External Heatsink Required 10x10mm BGA Package Single 3.3V Power Supply PB-VSC12

VSC1235 General Description

The VSC1235 and VSC1236 is a complete highperformance multiplexer/demultiplexer chip set designed for 9.9-12.5 Gbps applications, including SONET OC-192, SDH STM-64, 10GbE, G.975, G.709 and offering enhanced capabilities specifically designed to address the needs of Ultra Long Haul (ULH) and Long H.

VSC1235 Datasheet (446.05 KB)

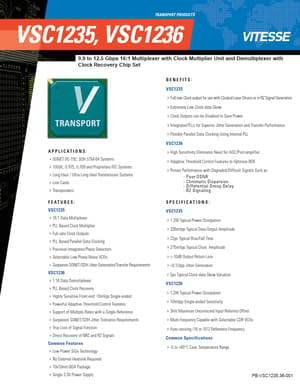

Preview of VSC1235 PDF

Datasheet Details

Part number:

VSC1235

Manufacturer:

Vitesse Semiconductor

File Size:

446.05 KB

Description:

(vsc1235 / vsc1236) 16:1 multiplexer.
www.DataSheet4U.com TRANSPORT PRODUCTS VSC1235, VSC1236 9.9 to 12.5 Gbps 16:1 Multiplexer with Clock Multiplier Unit and Demultiplexer with Clock Re.
