VSC7940 Datasheet, Driver, Vitesse Semiconductor

VSC7940 Features

• Driver SONET/SDH 3.125Gb/s Laser Diode Driver with Automatic Power Control Applications
• SONET/SDH at 622Mb/s, 1.244Gb/s, 2.488Gb/s, 3.125Gb/s
• Full-Speed Fibre Channel (1.

PDF File Details

Part number:

VSC7940

Manufacturer:

Vitesse Semiconductor

File Size:

212.45kb

Download:

📄 Datasheet

Description:

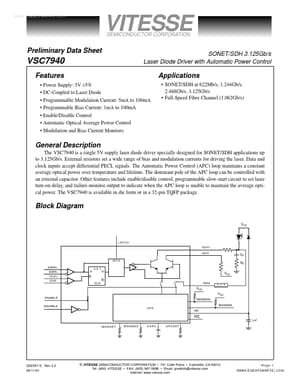

Sonet/sdh 3.125gb/s laser diode driver. The VSC7940 is a single 5V supply laser diode driver specially designed for SONET/SDH applications up to 3.125Gb/s. External resistor

VSC7940 Application

• Applications
• SONET/SDH at 622Mb/s, 1.244Gb/s, 2.488Gb/s, 3.125Gb/s
• Full-Speed Fibre Channel (1.062Gb/s)
• Power Supply:
