VSC7961

3.125Gb/s PECL Limiting Amplifier

VSC7961 Features

* 3.125Gb/s PECL Limiting Amplifier with LOS Detect Applications

* SONET/SDH at 622Mb/s, 1.244Gb/s, 2.488Gb/s, and 3.125Gb/s

* Full-Speed Fibre Channel (1.062Gb/s)

* Small Form Factor (SFF) Receivers

* ATM Optical Receivers

* 3.3V or 5V Power Supply

VSC7961 General Description

The VSC7961 is a single-supply limiting amplifier with Loss of Signal (LOS) detect for SONET/SDH and Fibre Channel applications up to 3.125Gb/s. The VSC7961 provides a constant output signal swing for a wide range of input voltages and has Positive Emitter-Coupled Logic (PECL). The VSC7959 provides .

VSC7961 Datasheet (135.29 KB)

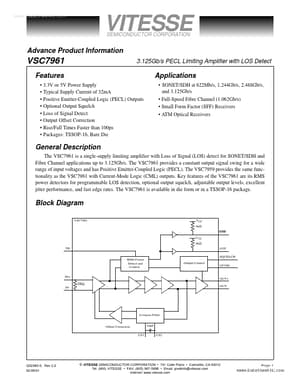

Preview of VSC7961 PDF

Datasheet Details

Part number:

VSC7961

Manufacturer:

Vitesse Semiconductor

File Size:

135.29 KB

Description:

3.125gb/s pecl limiting amplifier.
