VSC7991

SONET/SDH 10.7Gb/s Electroabsorption Modulator/Laser Diode Driver

VSC7991 Features

* Maximum Rise/Fall Times of 38ps

* High-Speed Operation (Up to 10.7Gb/s NRZ Data)

* Differential Inputs SONET/SDH 10.7Gb/s Electroabsorption Modulator/Laser Diode Driver

* Single-Supply

* CML-Compatible Data Inputs

* On-Chip 50Ω Input Terminations

VSC7991 General Description

The VSC7991 is a single 7V supply, 10.7Gb/s Electroabsorption Modulator (EAM)/laser diode driver with direct access to the laser modulation FETs. Laser offset and modulation currents are set by external components allowing precision monitoring and setting of the voltage levels. Data inputs are diffe.

VSC7991 Datasheet (139.66 KB)

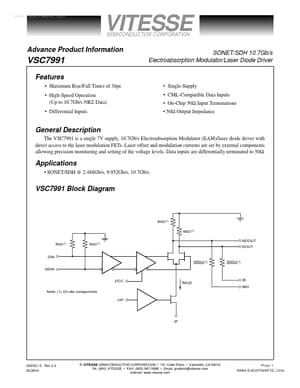

Preview of VSC7991 PDF

Datasheet Details

Part number:

VSC7991

Manufacturer:

Vitesse Semiconductor

File Size:

139.66 KB

Description:

Sonet/sdh 10.7gb/s electroabsorption modulator/laser diode driver.
