VSC9195 Datasheet - Vitesse Semiconductor

VSC9195 (VSC9195 / VSC9192) Telecomm / Datacomm

The VSC9195 is a 136 x 136 Time Slot Interchange (TSI) Switch IC supporting TFI-5 (STS-48 like frame) data on every input and output. All inputs and outputs are differential serial signals running at 2.488 Gb/s for TDM signals, or 2.125 Gb/s, or 2.488-2.67 Gb/s for signals to be routed transparentl.

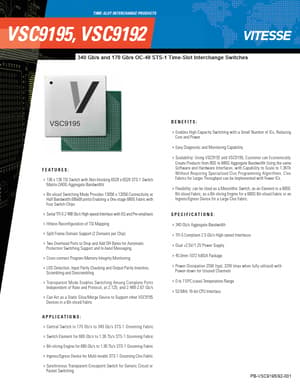

TIME-SLOT INTERCHANGE PRODUCTS VSC9195, VSC9192 340 Gb/s and 170 Gb/s OC-48 STS-1 Time-Slot Interchange Switches BENEFITS: Enables High Capacity Switching with a Small Number of ICs, Reducing Cost and Power Easy Diagnostic and Monitoring Capability Scalability: Using VSC9192 and VSC9195, Customer can Economically Create Products from 80G to 680G Aggregate Bandwidth Using the same Software and Hardware Interfaces, with Capability to Scale to 1.36Tb Without Requiring Specialized Clos Programm.

VSC9195 Datasheet (442.76 KB)
