SSC050 I2C Backplane Controller

SSC050 I2C Backplane Controller Product Brief The SSC050 I2C Backplane Controller is a CMOS integrated circuit, which enables a system designer to reduce system cost by integrating all of the digital logic typically required in a storage enclosure. The SSC050 may be used in any embedded control application including parallel SCSI, Fibre Channel or any other application where the monitoring and control of a large number of digital I/O signals is required. Programming the SSC050 is easy through a .

SSC050 Features

* I2C Serial Interface (DC to 400Khz) 4 Fan Speed Monitor Inputs 40 Programmable, Bi-directional I/O Pins Flexible FC-AL Port Bypass Control Logic Bit Programmable Interrupt Control Seven LED Flash Rates 64 PQFP Package Cu or Optics PBC_EN VSC7120 Local I/O (x8) VSC7120 VITESSE Embedded Controller

SSC050 Datasheet (68.00 KB)

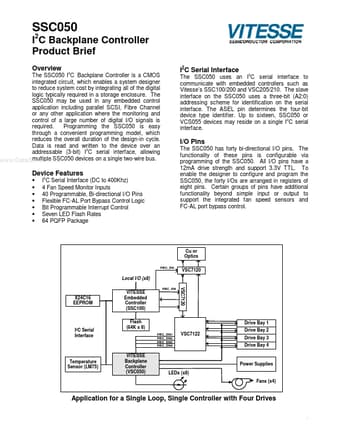

SSC050 Datasheet Preview — Preview of SSC050 PDF

Datasheet Details

Part number:

SSC050

Manufacturer:

Vitesse

File Size:

68.00 KB

Description:

I2c backplane controller.
