SXF6523, SXF6521 Datasheet - Voltage Multipliers

SXF6523 (SXF6521 - SXF6525) Rectifiers

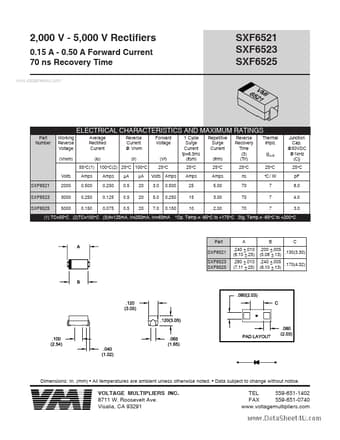

2,000 V - 5,000 V Rectifiers 0.15 A - 0.50 A Forward Current 70 ns Recovery Time www.datasheet4u.com SXF6521 SXF6523 SXF6525 ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current (Io) 55°C(1) Volts S X F 6521 S X F 6523 S X F 6525 2000 3000 5000 Amps 0.500 0.250 0.150 Reverse Current @ Vrwm (Ir) Forward Voltage (Vf) 25°C Volts Amps 3.0 5.0 7.0 0.500 0.250 0.150 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps 25 15 10 Repetitive Surg.

SXF6521_VoltageMultipliers.pdf

SXF6523 Datasheet Preview — This datasheet PDF includes multiple part numbers: SXF6523, SXF6521. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SXF6523, SXF6521

Manufacturer:

Voltage Multipliers

File Size:

137.71 KB

Description:

(sxf6521 - sxf6525) rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SXF6523, SXF6521.
Please refer to the document for exact specifications by model.
