WP3080APA - N-Channel Power MOSFET

📥 Download Datasheet

Preview of WP3080APA PDF

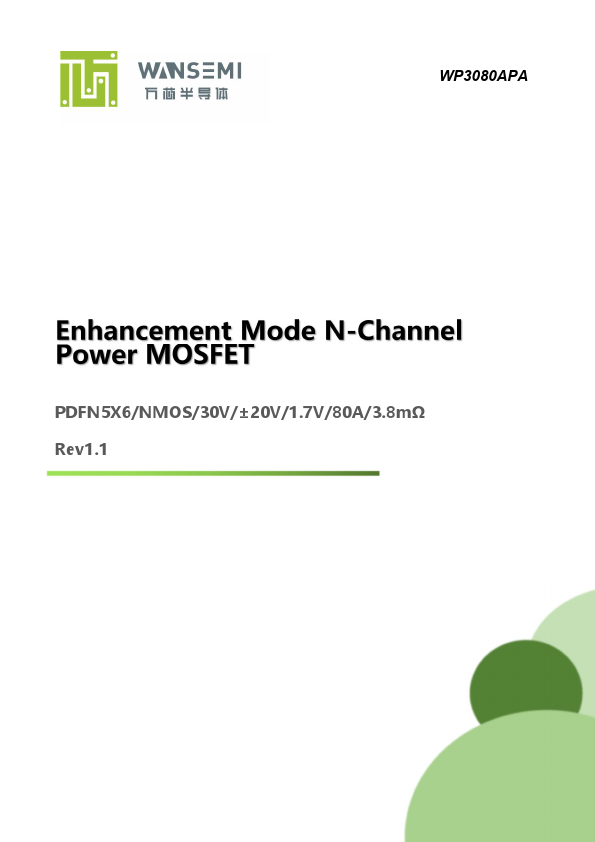

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number WP3080APA
Manufacturer WANSEMI
File Size 1.11 MB
Description N-Channel Power MOSFET
Datasheet download datasheet WP3080APA-WANSEMICONDUCTOR.pdf

WP3080APA Product details

Description

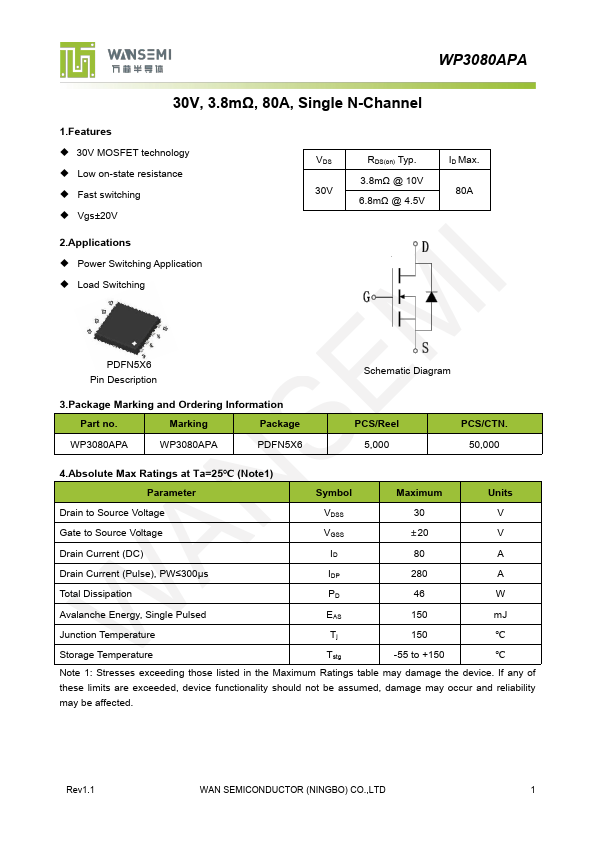

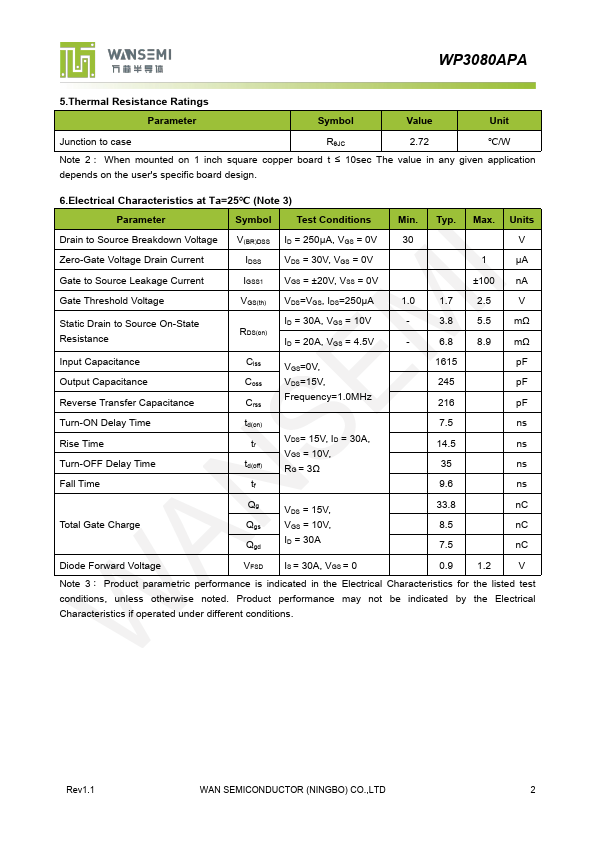

3.Package Marking and Ordering Information Part no.Marking Package WP3080APA WP3080APA PDFN5X6 Schematic Diagram PCS/Reel 5,000 PCS/CTN.50,000 4.Absolute Max Ratings at Ta=25℃ (Note1) Parameter Symbol Maximum Units Drain to Source Voltage VDSS 30 V Gate to Source Voltage VGSS ±20 V Drain Current (DC) ID 80 A Drain Current (Pulse), PW≤300μs IDP 280 A Total Dissipation PD 46 W Avalanche Energy, Single Pulsed EAS 150 mJ Junction Temperature Tj 150 ℃ Sto
