WS8.0P6SMB-B - Power Transient Voltage Suppressor

Download the WS8.0P6SMB-B datasheet PDF. This datasheet also covers the WS8.0P6SMB variant, as both devices belong to the same power transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 600 watts Peak Pulse Power (10/1000 μs).
  • Unidirectional and Bidirectional Protection.
  • Fast Response Time : Typically < 1ns.
  • Excellent Clamping Capability.
  • Glass Passivated Junction.
  • Built-in Strain relief.
  • Low inductance.
  • Low profile package.
  • High temperature solder:260℃/10 seconds at terminal SMB (JEDEC DO-214AA) Mechanical Characteristics.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (WS8.0P6SMB-WAYON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number WS8.0P6SMB-B
Manufacturer WAYON
File Size 209.69 KB
Description Power Transient Voltage Suppressor
Datasheet download datasheet WS8.0P6SMB-B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WS82C55A-5C CMOS Programmable peripheral Interface Wing Shing Computer Components
WS82C55A-5P CMOS Programmable peripheral Interface Wing Shing Computer Components
WS82C55A-5Q CMOS Programmable peripheral Interface Wing Shing Computer Components
WS832 Latch-type Hall-Effect Matrixopto
WS8M High Surge Withstand Wirewound Resistor BOURNS

Other Datasheets by WAYON

Part Number Description
WS8.0P6SMB Power Transient Voltage Suppressor
WS8.0P4SMA Power Transient Voltage Suppressor
WS8.0P4SMA-B Power Transient Voltage Suppressor
WS8.5P4SMA Power Transient Voltage Suppressor
WS8.5P4SMA-B Power Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

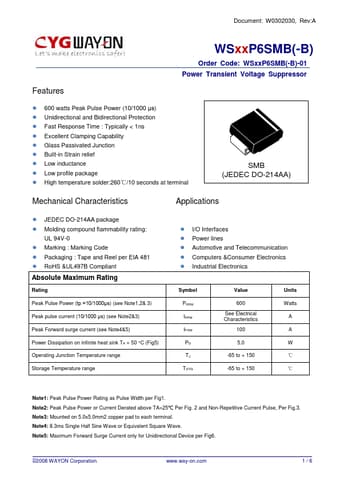

Document: W0302030, Rev:A WSxxP6SMB(-B) Order Code: WSxxP6SMB(-B)-01 Power Transient Voltage Suppressor Features  600 watts Peak Pulse Power (10/1000 μs)  Unidirectional and Bidirectional Protection  Fast Response Time : Typically < 1ns  Excellent Clamping Capability  Glass Passivated Junction  Built-in Strain relief  Low inductance  Low profile package  High temperature solder:260℃/10 seconds at terminal SMB (JEDEC DO-214AA) Mechanical Characteristics Applications  JEDEC DO-214AA package  Molding compound flammability rating: UL 94V-0  Marking : Marking Code  Packaging : Tape and Reel per EIA 481  RoHS &UL497B Compliant Absolute Maximum Rating Rating Peak Pulse Power (tp =10/1000μs) (see Note1,2& 3) Peak pulse current (10/1000 μs) (see Note2&3) Peak Forward surge curr
