1N60P, 1N60 Schottky Barrier Diodes

WEITRON

Description

Schottky Barrier Diodes P b Lead(Pb)-Free .

📥 Download Datasheet

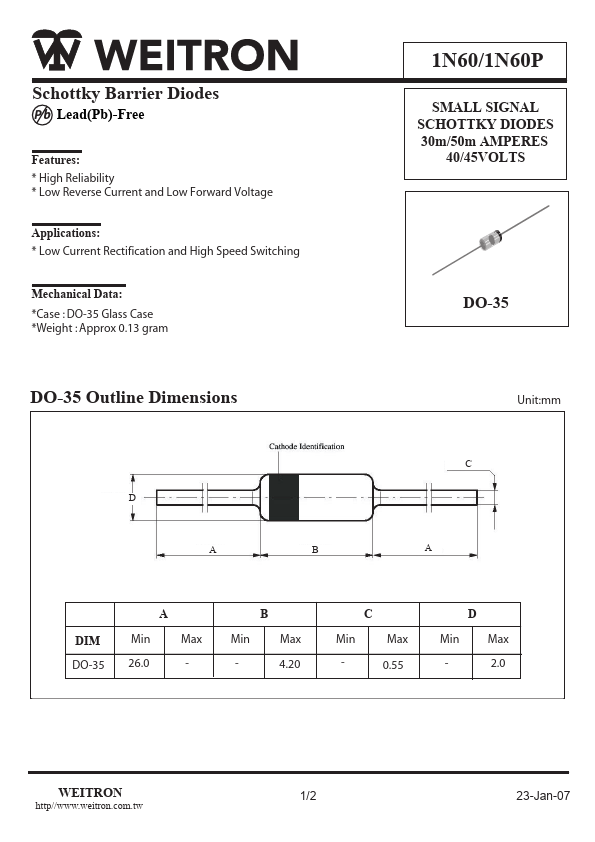

1N60P Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N60P, 1N60. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N60P, 1N60
Manufacturer: WEITRON
File Size: 190.44 KB
Datasheet: 1N60-WEITRON.pdf
Description: Schottky Barrier Diodes
Note: This datasheet PDF includes multiple part numbers: 1N60P, 1N60.
Please refer to the document for exact specifications by model.

Features

* High Reliability

Applications

* Low Current Rectification and High Speed Switching Mechanical Data:
* Case : DO-35 Glass Case
* Weight : Approx 0.13 gram 1N60/1N60P SMALL SIGNAL SCHOTTKY DIODES 30m/50m AMPERES 40/45VOLTS DO-35 DO-35 Outline Dimensions Unit:mm D A B C A DIM DO-35 A Min Max 26.0 - B Min Ma
