B0530WS

SMALL SIGNAL SCHOTTKY DIODES

B0530WS Features

* Low Forward Voltage Drop.

* Guard Ring Construction for Transient Protection.

* High Conductance. Description:

* Case Material: Molded Plastic. UL Flammability

* Moisture Sensitivity: Level 1 per J-STD-020C.

* Terminals: Solderable per MIL-STD-202, Method 208.

* Polari

B0530WS General Description


* Case Material: Molded Plastic. UL Flammability
* Moisture Sensitivity: Level 1 per J-STD-020C.
* Terminals: Solderable per MIL-STD-202, Method 208.
* Polarity: Cathode Band.
* Marking: SE
* Weight: 0.004 grams (approximate). SOD-323 Outline Demensions B0530WS SMALL SIGNAL.

B0530WS Datasheet (549.79 KB)

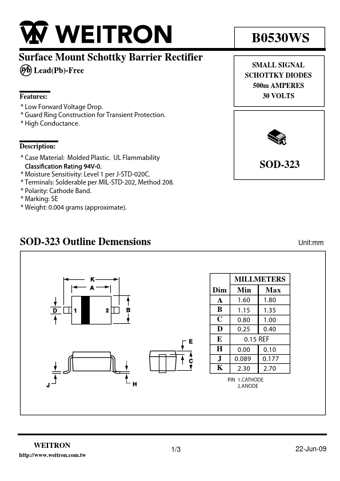

Preview of B0530WS PDF

Datasheet Details

Part number:

B0530WS

Manufacturer:

WEITRON

File Size:

549.79 KB

Description:

Small signal schottky diodes.
