S-BAS316 Datasheet, Diode, WEITRON

S-BAS316 Features

  • Diode
  • Ultra small plastic SMD package
  • High switching speed: max. 4 ns
  • Continuous reverse voltage: max. 75 V
  • Repetitive peak reverse voltage: max. 100 V

PDF File Details

Part number:

S-BAS316

Manufacturer:

WEITRON

File Size:

1.07MB

Download:

📄 Datasheet

Description:

High-speed diode. The BAS316 is a high-speed switching diode fabricated in planar technology, and encapsulated in the SOD323(SC76) SMD plastic package.

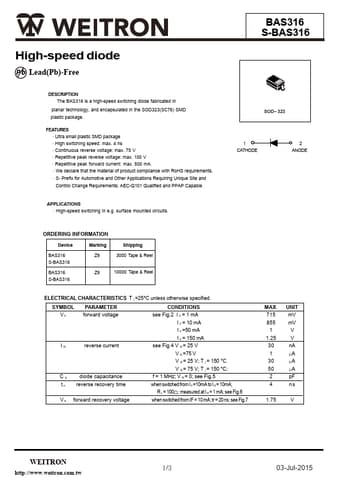

Datasheet Preview: S-BAS316 📥 Download PDF (1.07MB)
Page 2 of S-BAS316 Page 3 of S-BAS316

S-BAS316 Application

  • Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. APPLICATIONS
  • High-speed switching

TAGS

S-BAS316
High-speed
diode
WEITRON
