2SC1812 - NPN EPITAXIAL SILICON TRANSISTOR

📥 Download Datasheet

Datasheet preview – 2SC1812

Datasheet Details

Part number 2SC1812
Manufacturer WEJ
File Size 76.36 KB
Description NPN EPITAXIAL SILICON TRANSISTOR
Datasheet download datasheet 2SC1812 Datasheet
Additional preview pages of the 2SC1812 datasheet.

📁 Similar Datasheet

  • 2SC1810 - NPN Transistor (ETC)
  • 2SC1815 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC1815 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC1815 - NPN SILICON TRANSISTOR (UTC)
  • 2SC1815 - SILICON NPN TRANSISTORS (Central Semiconductor)
  • 2SC1815 - NPN Transistor (JCET)
  • 2SC1815 - Silicon Epitaxial Planar Transistor (GME)
  • 2SC1815 - NPN Transistors (Kexin)
  • 2SC1815 - NPN GENERAL PURPOSE SWITCHING TRANSISTOR (GOODWORK)
  • 2SC1815 - SOT-23 Plastic-Encapsulate NPN Transistors (NIGE)
Other Datasheets by WEJ

Full PDF Text Transcription

Click to expand full text

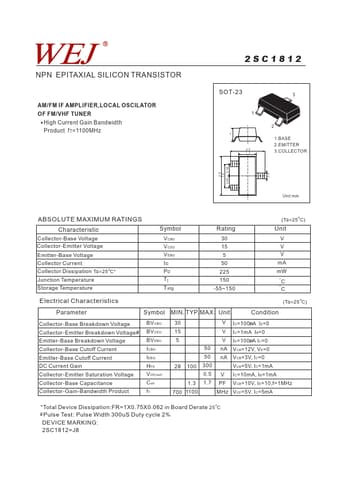

NPN EPITAXIAL SILICON TRANSISTOR AM/FM IF AMPLIFIER,LOCAL OSCILATOR OF FM/VHF TUNER High Current Gain Bandwidth Product fT=1100MHz 2SC1812 SOT-23 1 1. 2.4 1.3 3 2 1.BASE 2.EMITTER 3.COLLECTOR 2.9 1.9 0.95 0.95 0.4 Unit:mm ABSOLUTE MAXIMUM RATINGS Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Ta=25 oC* Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO Ic PD Tj Tstg Rating 30 15 5 50 225 150 -55~150 (Ta=25 oC) Unit V V V mA mW OC OC Electrical Characteristics (Ta=25 oC) Parameter Symbol MIN. TYP. MAX.
