BCX20LT1 Datasheet - WEJ

BCX20LT1 NPN TRANSISTOR

RoHS BCX20LT1 NPN EPITAXIAL SILICON TRANSISTOR GENERAL PURPOSE TRANSISTORS ABSOLUTE MAXIMUM RATINGS at Ta=25 Characteristic Symbol Rating Unit Collector-Base Voltage Vcbo 30 V Collector-Emitter Voltage Vceo 25 V Emitter-Base Voltage Vebo 5.0 V Collector Current Ic 500 mA Total Device Dissipation FR-5 Board(1) Ta=25 PD 225 mw Derate above 25 1.8 mW/ Total Device Dissipation Alumina Substrate,(2) Ta=25 Derate above 25 Junction Temperature ICStorage Temperature PD 300 2..

BCX20LT1-WEJ.pdf

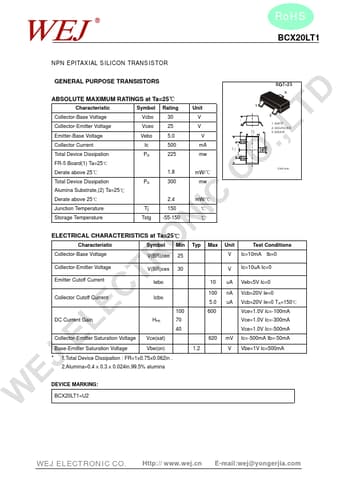

Preview of BCX20LT1 PDF

Datasheet Details

Part number:

BCX20LT1

Manufacturer:

WEJ

File Size:

59.05 KB

Description:

Npn transistor.
