RD7.5ES - Zener diode

Datasheet Summary

Features

  • 1. DO-34 Glass sealed package This diode can be inserted into a PC board with a shorter pitch（5mm） 2. Planar process 3. Vz applied E24 standard.

📥 Download Datasheet

Datasheet preview – RD7.5ES

Datasheet Details

Part number RD7.5ES
Manufacturer WEJ
File Size 856.29 KB
Description Zener diode
Datasheet download datasheet RD7.5ES Datasheet
Additional preview pages of the RD7.5ES datasheet.

📁 Similar Datasheet

  • RD7.5ES - ZENER DIODES (EIC)
  • RD7.5ES - Zener Diode (NEC)
  • RD7.5E - Zener diode (Excel Semiconductor)
  • RD7.5E - SILICON ZENER DIODES (EIC)
  • RD7.5E - Zener Diode (NEC)
  • RD7.5E - 500mW PLANAR TYPE SILICON ZENER DIODES (Renesas)
  • RD7.5EB - ZENER DIODES (SEMTECH)
  • RD7.5F - ZENER DIODES (EIC)
  • RD7.5F - ZENER DIODES (NEC)
  • RD7.5FM - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
Other Datasheets by WEJ

    Full PDF Text Transcription

    Click to expand full text

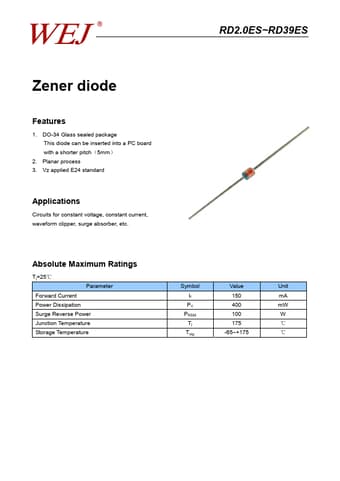

    RD2.0ES~RD39ES Zener diode Features 1. DO-34 Glass sealed package This diode can be inserted into a PC board with a shorter pitch（5mm） 2. Planar process 3. Vz applied E24 standard Applications Circuits for constant voltage, constant current, waveform clipper, surge absorber, etc. Absolute Maximum Ratings Tj=25℃ Parameter Forward Current Power Dissipation Surge Reverse Power Junction Temperature Storage Temperature Symbol If PV PRSM Tj Tstg Value 150 400 100 175 -65~+175 Unit mA mW W ℃ ℃ RD2.0ES~RD39ES Electrical Characteristics Tj=25℃ Type Number Suffix RD 2.0ES RD 2.2 ES RD 2.4 ES RD 2.7 ES RD 3.0 ES RD 3.3 ES RD 3.6 ES RD 3.9 ES RD 4.3 ES RD 4.7 ES RD 5.1 ES RD 5.6 ES RD 6.2 ES A B A B A B A B A B A B A B A B A B C A B C A B C A B C A B C Zener voltage Vz (V) Min.
