N1010NC320, N1010NC300 Datasheet - WESTCODE

N1010NC320 Phase Control Thyristor

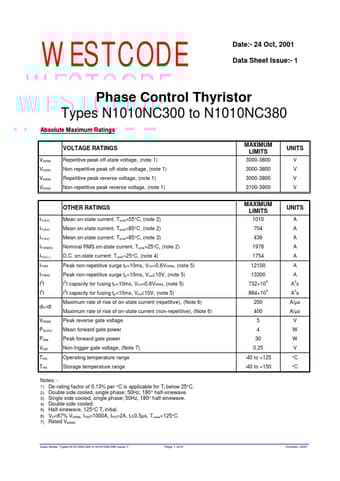

WESTCODE Date:- 24 Oct, 2001 Data Sheet Issue:- 1 Phase Control Thyristor Types N1010NC300 to N1010NC380 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3000-3800 3000-3800 3000-3800 3100-3900 UNITS V V V V IT(AV) IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t diT/dt VRGM PG(AV) P.

N1010NC300-WESTCODE.pdf

This datasheet PDF includes multiple part numbers: N1010NC320, N1010NC300. Please refer to the document for exact specifications by model.
N1010NC320 Datasheet Preview Page 2 N1010NC320 Datasheet Preview Page 3

Datasheet Details

Part number:

N1010NC320, N1010NC300

Manufacturer:

WESTCODE

File Size:

114.59 KB

Description:

Phase control thyristor.

Note:

This datasheet PDF includes multiple part numbers: N1010NC320, N1010NC300.
Please refer to the document for exact specifications by model.
