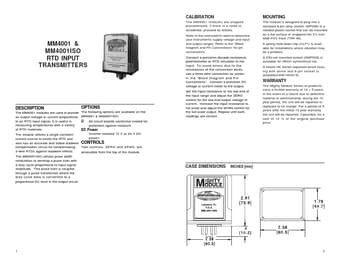

MM4001ISO RTD INPUT TRANSMITTERS

The MM4001 modules are used to provide an output voltage or current proportional to an RTD input signal. It is useful in measuring temperatures with a variety of RTD materials. OPTIONS The following options are available on the MM4001 & MM4001ISO: U All circuit boards conformal coated for protectio.

CALIBRATION The MM4001 modules are shipped precalibrated, if there is a need to recalibrate, proceed as follows: Refer to the instrument's label to determine your instrument's supply voltage and input and output ranges. Refer to the "Block Diagram and Pin Connections" for pin connections. Connect a precision decade resistance, potentiometer or RTD simulator to the input. To avoid errors due to the resistances of the connection wires, use a three-wire connection as shown in the “Block Diagram and.
