GDZJ8.2C-N

500mW AXIAL LEAD ZENER DIODE

GDZJ8.2C-N Features

* Planar Die construction

* 500mW Power Dissipation

* Ideally Suited for Automated Assembly Processes 1.02(26.0)MIN. .018(0.45) .014(0.35) .116(2.90) .092(2.30) MECHANICAL DATA

* Case: Molded Glass DO-34

* Terminals: Solderable per MIL-STD-202, Method 208

GDZJ8.2C-N Datasheet (421.60 KB)

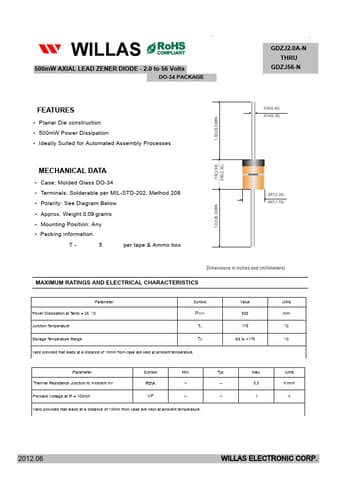

Preview of GDZJ8.2C-N PDF

Datasheet Details

Part number:

GDZJ8.2C-N

Manufacturer:

WILLAS

File Size:

421.60 KB

Description:

500mw axial lead zener diode.
