MB16S, MB12S SURFACE MOUNT SCHOTTKY BRIDGE RECTIFIERS

MB16S Description

WILLAS 1.0A SURFACE MOUNT SCHOTTKY BRIDGE RECTIFIERS -20V- 100V MD-S PACKAGE .

MB16S Features

* Plastic package has underwriters laboratory MB12S Pb Free Product MD-S MB110S THRU flammability classification 94V-0
* Saves space on printed circuit boards
* High temperature soldering guaranteed: 260 ºC /10 seconds.
* RoHS product for packing code suffix "G" Halogen free pro

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB16S, MB12S. Please refer to the document for exact specifications by model.

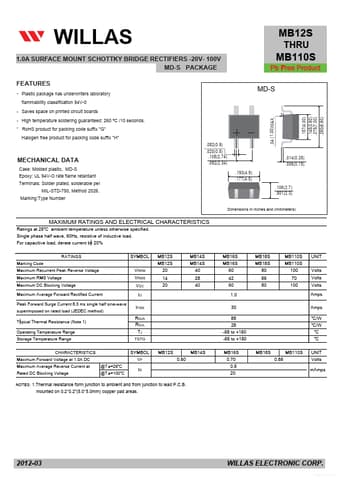

datasheet Preview Page 2

Datasheet Details

Part number
MB16S, MB12S
Manufacturer
WILLAS
File Size
387.78 KB
Datasheet
MB12S_WILLAS.pdf
Description
SURFACE MOUNT SCHOTTKY BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MB16S, MB12S.
Please refer to the document for exact specifications by model.
