STN1A60 Datasheet - WINSEMI

Bi-Directional Triode Thyristor

STN1A60 Features

* Repetitive Peak off-State Voltage: 600V

* R.M.S On-State Current(IT(RMS)=1A

* Low on-state voltage: VTM=1.2(typ.)@ ITM

* Low reverse and forward blocking current: IDRM=500uA@TC=125℃

* Low holding current: IH=4mA (typ.)

* High Commutation dV/dt. STN1A60 Logic Level Bi-Direc

STN1A60 General Description

General purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits such as fan speed and temperature modulation control, lighting control and static switching relay. .

STN1A60 Datasheet (348.39 KB)

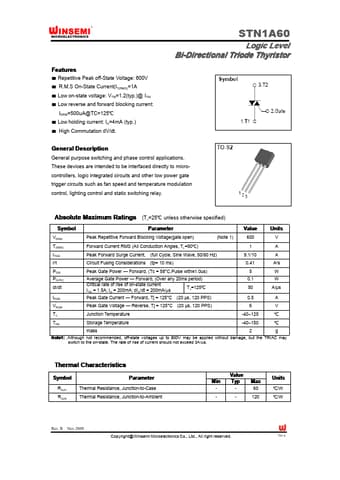

STN1A60 Datasheet Preview — Preview of STN1A60 PDF

Datasheet Details

Part number:

STN1A60

Manufacturer:

WINSEMI

File Size:

348.39 KB

Description:

Bi-directional triode thyristor.
