AG101 Datasheet, Block, WJ Communication

AG101 Features

• Block
• 60 - 3000 MHz
• +32 dBm Output IP3
• 2.4 dB Noise Figure
• 14 dB Gain
• +15 dBm P1dB
• MTBF >1000 Years
• SOT-89 SMT Package

PDF File Details

Part number:

AG101

Manufacturer:

WJ Communication

File Size:

171.38kb

Download:

📄 Datasheet

Description:

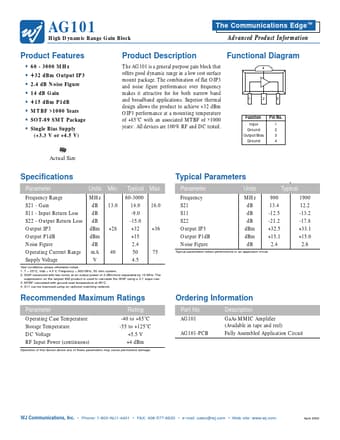

High dynamic range gain block. Functional Diagram The AG101 is a general purpose gain block that offers good dynamic range in a low cost surface mount package. Th

AG101 Application

• Applications Superior thermal design allows the product to achieve +32 dBm OIP3 performance at a mounting temperature of +85°C with an associated M
