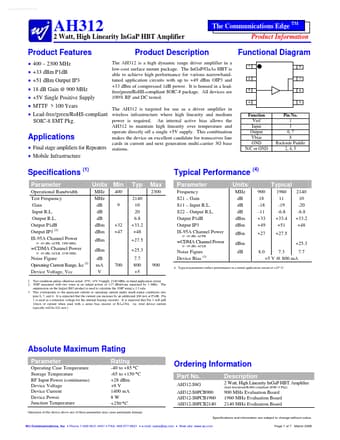

AH312 Datasheet, Amplifier, WJ Communication

AH312 Features

• Amplifier
• 400
    – 2300 MHz
• +33 dBm P1dB
• +51 dBm Output IP3
• 18 dB Gain @ 900 MHz
• +5V Single Positive Supply
• MTTF > 100 Yea

PDF File Details

Part number:

AH312

Manufacturer:

WJ Communication

File Size:

382.64kb

Download:

📄 Datasheet

Description:

High linearity ingap hbt amplifier. The AH312 is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achieve high pe

AH312 Application

• Applications makes the device an excellent candidate for transceiver line cards in current and next generation multi-carrier 3G base
• Final
